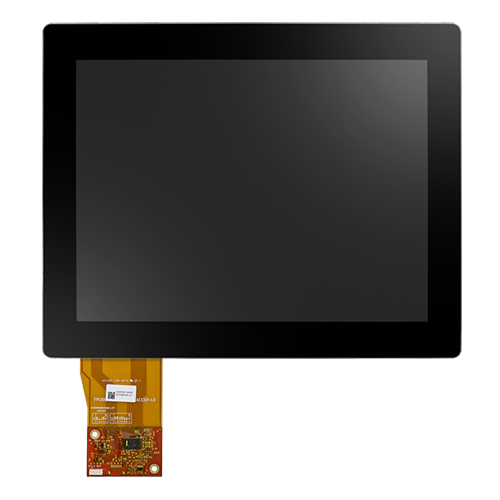

IDK-1112 IDK-1000 Series Industrial Display Kit

IDK-1112 IDK-1000 Series Industrial Display Kit Specification

Interface
HDMI, USB

Warranty
Yes

Type
Touch Screen Monitor

Application
Desktop

Viewing Angle
90

Panel Type
LED

IDK-1112 IDK-1000 Series Industrial Display Kit Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About IDK-1112 IDK-1000 Series Industrial Display Kit

The IDK-1112 IDK-1000 Series Industrial Display Kit is a high-quality touch screen monitor designed for desktop applications. With a LED panel type and a viewing angle of 90 degrees, this display kit offers a clear and vibrant display experience. The kit includes HDMI and USB interfaces for easy connectivity, along with audio input/output options. Powered by an Intel H110 chipset and an i3 processor, this display kit is reliable and efficient. The rugged aluminum front bezel provides IP65/NEMA 4 protection, making it suitable for industrial use. With a 17-inch SXGA TFT LCD panel and a 5-wire resistive touchscreen, this kit offers a user-friendly and durable solution for various industrial applications.

Audio	1 x Audio (Mic-in & Line-out)
BIOS	AMI
Chipset	Intel H110
COM	3 x RS-232 1 x RS-232/422/485
CPU	LGA1151 socket 7th/6th gen Intel Core i7/i5/i3, Celeron & Pentium processor
Dimensions (W x D x H)	411.82 x 90 x 353.24 mm (16.21" x 3.54" x 13.91")
Ethernet	2 x 10/100/1000 Mbps (Intel i219-LM/i211-AT)
Front Bezel	Aluminum w/ IP65/NEMA 4 rugged Protection
LCD Panel	SXGA TFT LCD 250 nits 1280 x 1024 pixels
System Memory	2 x 288-pin Long-DIMM DDR4-2133, up to 32GB
Touchscreen	5-wire Resistive Type
Watchdog Timer	255 Levels, 1 to 255 sec.
Weight (net/gross)	6.4 kg (14.11 lb)/10.2 kg (22.49 lb)
Model Name/Number	P1177E-500
Power Supply	240 VAC, 200W
Expansion	1 x PCIe x4 or 1 x PCI
Size	17inch Display
Brand	Axiomtek
Processor	i3
